SOWTER Type 0531
Bias supply transformer for
FAIRCHILD 670 COMPRESSOR (T301). Tested with the Drip 2011 PC Board.
SOWTER Type 0531 Bias supply transformer for |
PACKAGE OPTIONS | Part Number |
|
||
| APPLICATION Bias suply transformer for Fairchild 670 compressor. part number T301 | ||
| FEATURES Low loss Grain Oriented Silicon Steel (GOSS) core. Colour coded leads. 24V tap provided for use with a silicon diode bridge rectifier. 26.8V should be used if the original Selenium bridge rectifier is used. Package Options. Good regulation with secondary voltages specified at rated current. | ||
| DIMENSIONS | See link: SIZE E | |
| WEIGHT | 0.8 kg approx. | |

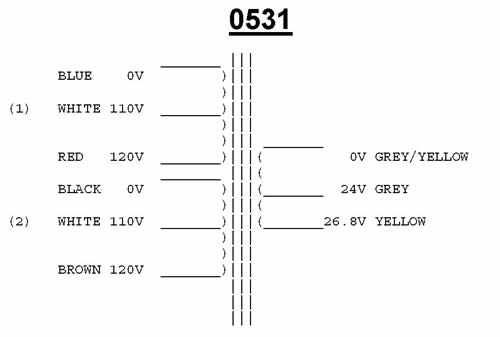

| EU PRIMARY | -10-0-200-220-240 V | |

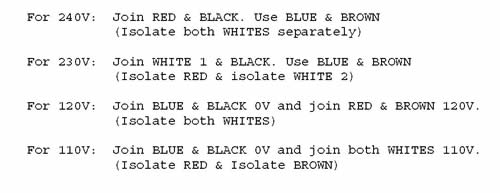

| WW PRIMARY (two windings connected in series or parallel) | 0-110-120 V x2 | |
| SECONDARY 1 (use 20V tap for silicon diode bridge) | 26.8V taped at 24V. 500 mA | |
| |
|
|
