Sowter Type 1009

600/50k line input transformer
Replacement for UTC A10

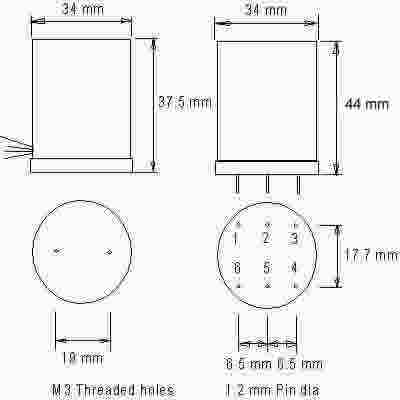

PACKAGE OPTIONS Part Number
Coloured Leads 1009-F
PCB Mounting 1009-C
APPLICATION  For use as a line input transformer for tube or solid state amplifier.  Available with leads or for PCB mounting.  For use where a high step-up ratio is required and some loss of bandwidth and input impedance is acceptable.  Repalcement for UTC A10 as used in the Teletronix 1968 LA-2A

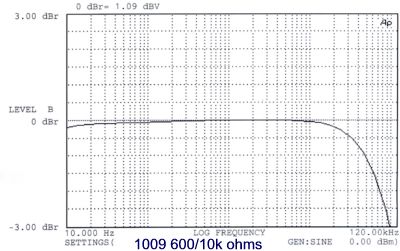

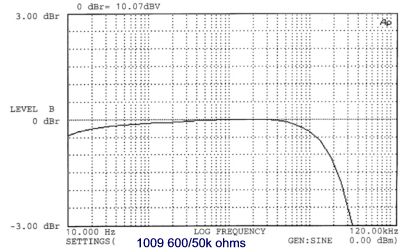

FEATURES  Mumetal core for minimal harmonic distortion.  Mumetal can for magnetic shielding. High signal level capibility. Bandwidth can be improved considerably at the expense of input impedance by loading the secondary with between 50k to 10K ohms.   See plots above taken with a 50K and 10K load.
RATIO 1:9.1
MAXIMUM INPUT LEVEL 0.5 % THD at 50 Hz (40 ohm source) +15 dBu
FREQUENCY RESPONSE  600 Ohm source 50k Ohm load -1.4 dB 20 Hz to 20 kHz

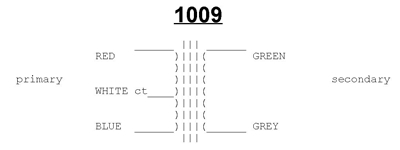

 SOWTER 1009 connections
