Sowter Type 3293
10k / 10k General Purpose
Bridging Transformer
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax:+44(0)1473 236188
Sowter Type 329310k / 10k General Purpose
|
PACKAGE OPTIONS | Part Number | Canford Code |
| Coloured Leads | 3293-F | 23-153 | |
| PCB Mounting | 3293-C | 23-154 | |
|
|
||
| APPLICATION For reduction of most kinds of noise caused when equipments are connected. For use where it is important not to load the driving circuit. Unbalanced to balanced conversion and vice versa. For helping to ensure Electromagnetic Compatibility (EMC) compliance. | |||
| FEATURES Mumetal core for minimal harmonic distortion. Internal electrostatic shield for high common mode noise rejection. Mumetal can for magnetic shielding. | |||
| RATIO | 1:1 | ||
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +22 dBu | ||
| DISTORTION at 50 Hz (40 ohm source) | |||
| INSERTION LOSS 8k2 ohm source 10k ohm load | 1.25 dBu | ||

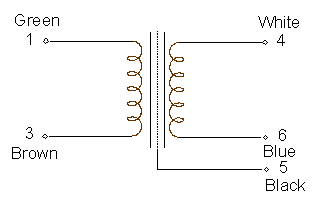

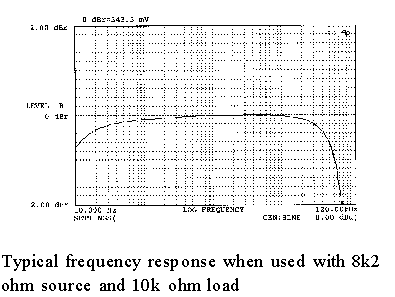

| FREQUENCY RESPONSE 8.2k ohm source 10K ohm load | +/- 0.25 dB 20 Hz to 40 kHz | ||
| INPUT/OUTPUT BALANCE | >60 dB | ||
|
|
||
