HIGH LEVEL HIGH BANDWIDTH LINE OUTPUT TRANSFORMER

Sowter Type 4652 - BUY

150+150/150+150 ohms High Level Line Output Transformer

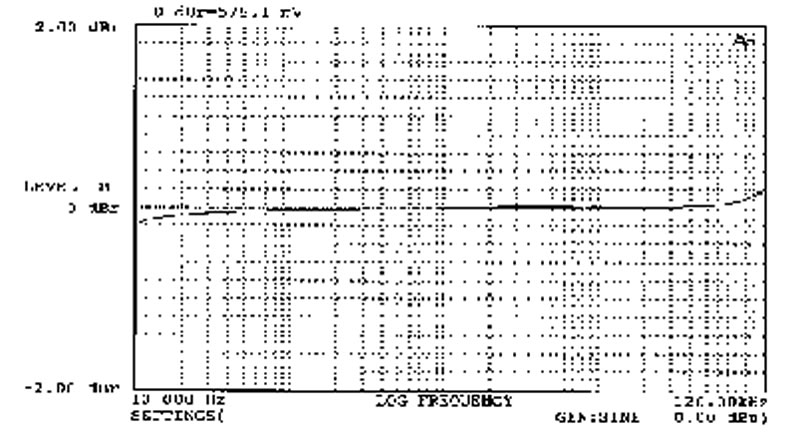

FREQUENCY RESPONSE

Typical response 600 Ohms source 600 Ohm load

Sowter 4652 Frequency response

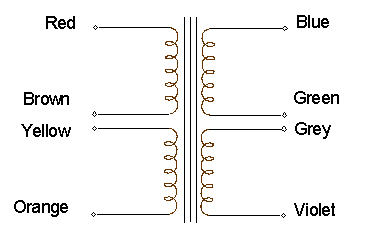

CONNECTIONS

9530 connections

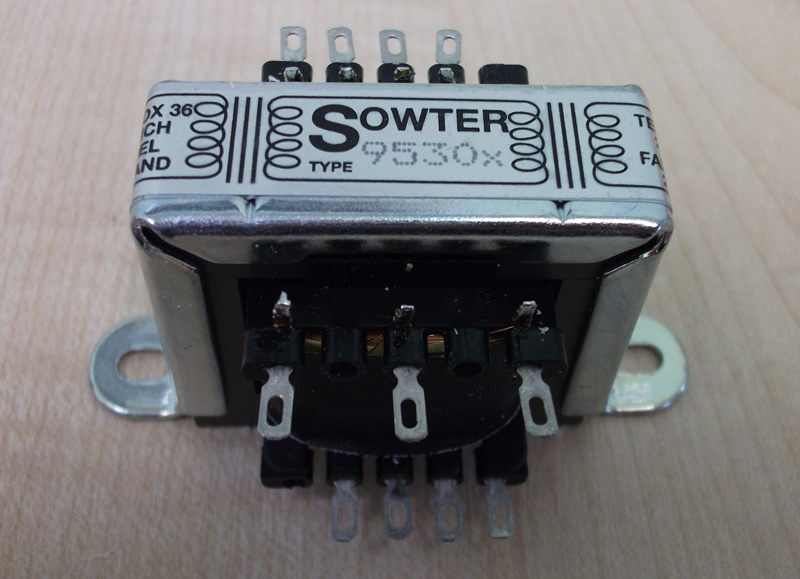

PACKAGE OPTIONS

Available with and without Mumetal can. For dimensions SEE HERE:

Sowter package styles





Open U-Clamp style

APPLICATION

For use where source is low impedance. Can be loaded with any impedance greater than 150 Ohms. For reduction of hum and buzz caused when equipments are connected. Four identical windings may be configured for voltage step up/down, splitting, combining, or balanced to unbalanced conversion and vice versa. Not suitable for high frequency common mode noise rejection

FEATURES

High grade Grain Oriented Silicon Iron core for high level capability. Quadrafilar winding gives exceptional high frequency response and balance. Can be configured as 600/150, 150/150, 600/600 Ohms etc
RATIO
1+1:1+1
MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source)
+34 dBu
DISTORTION at 50 Hz (40 ohm source)
0.1% at +28 dBu
INSERTION LOSS 600 ohm source 600 ohm load
1.44 dBu
INPUT/OUTPUT BALANCE
>60 dB
FREQUENCY RESPONSE 600 ohm source 600 ohm load
+/- 0.25 dB 10 Hz to 120 kHz
