SOWTER TYPE SA11
10,000 ohms 25W SINGLE ENDED OUTPUT TRANSFORMER FOR 211 ETC
The Boatyard, Cullingham Road
IPSWICH IP1 2EG England
Fax: +44(0)1473 236188
E-Mail sales@sowter.co.uk
| PACKAGE OPTIONS | PACKAGE CODE |
SOWTER TYPE SA1110,000 ohms 25W SINGLE ENDED OUTPUT TRANSFORMER FOR 211 ETC |
|
| FULLY SHROUDED | SA11-S | ||
| OPEN FRAME | SA11-O | ||
| ENCAPSULATED | SA11-P+ | ||
|
|
||
| APPLICATION High performance 25W single ended output transformer for use with 211 or similar valve requiring a 10,000 ohm reflected load. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Optional secondary winding configuration. Optional shrouded, open frame or encapsulated package styles. | |||
| PACKAGE SIZE | P | ||
| WEIGHT | 6.4 kg | ||
| WINDINGS: | Nominal Z | DC Resistance | |
| PRIMARY | 10,000 ohms | 340 ohms | |
| SECONDARY | 16/8/4 ohms | 0.75 ohms | |
| ALTERNATIVE SECONDARY OPTIONS | Tapped 8/4 ohms | ||
| DC quiescent current (no signal) | 70 mA | ||
| Maximum Power at 20 Hz | 25 Watts | ||
| PRIMARY INDUCTANCE | 80 Henrys | ||

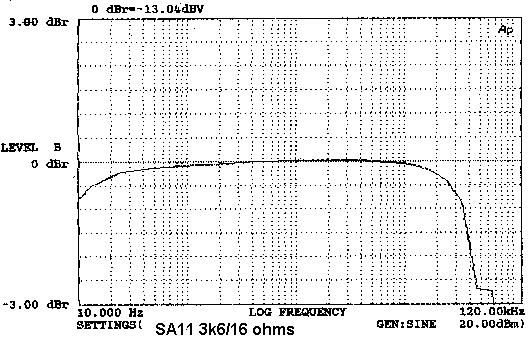

| FREQUENCY RESPONSE (700 ohm source, 16 ohm load) | 8 Hz to 40 kHz (-3 dB points typical) | ||
|
|
||
