SOWTER TYPE SE04
3000 ohms 10W SINGLE ENDED OUTPUT TRANSFORMER FOR EL34 ETC
| PACKAGE OPTIONS | PACKAGE CODE |
SOWTER TYPE SE043000 ohms 10W SINGLE ENDED OUTPUT TRANSFORMER FOR EL34 ETC |
|
| FULLY SHROUDED | SE04-S | ||
| OPEN FRAME | SE04-O | ||
|
|
||
| APPLICATION High performance 10W single ended output transformer for use with triode connected EL34 or similar valve requiring a 3000 ohm reflected load. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Optional secondary winding configuration. Optional shrouded or open frame package styles. | |||

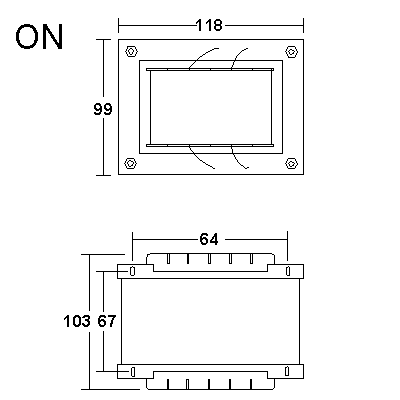

| PACKAGE SIZE | N | ||
| WEIGHT | 4.6 kg | ||
| WINDINGS: | Nominal Z | DC Resistance | |
| PRIMARY | 3000 ohms | 260 ohms | |
| SECONDARY | 16/8/4 ohms | 0.9 ohms | |
| ALTERNATIVE SECONDARY OPTIONS | Tapped 8/4 ohms | ||
| DC quiescent current (no signal) | 90 mA | ||
| Maximum Power at 20 Hz | 10 Watts | ||
| PRIMARY INDUCTANCE | 43 Henrys | ||

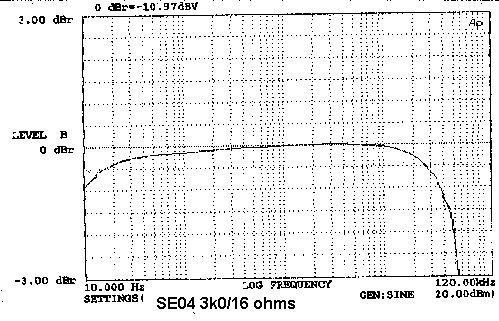

| FREQUENCY RESPONSE (5000 ohm source, 16 ohm load) | 8 Hz to 50 kHz (-3 dB points typical) | ||
|
|
||
