SOWTER TYPE SE05
2500 ohms 15W SINGLE ENDED OUTPUT TRANSFORMER FOR 2A3 ETC
| PACKAGE OPTIONS | PACKAGE CODE |
SOWTER TYPE SE052500 ohms 15W SINGLE ENDED OUTPUT TRANSFORMER FOR 2A3 ETC |
|

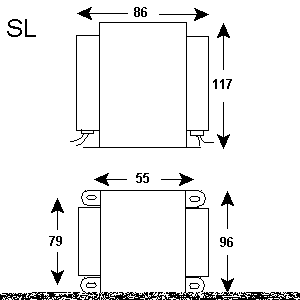

| FULLY SHROUDED | SE05-S | ||

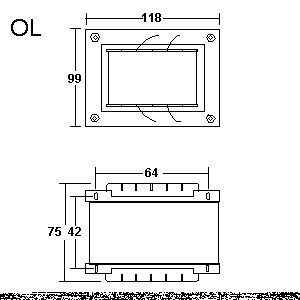

| OPEN FRAME | SE05-O | ||
|
|
||
| APPLICATION High performance 15W single ended output transformer for use 2A3 or similar valve requiring a 2500 ohm reflected load. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Optional secondary winding configuration. Optional shrouded or open frame package styles. | |||
| PACKAGE SIZE | L | ||
| WEIGHT | 2.6 kg | ||
| WINDINGS: | Nominal Z | DC Resistance | |
| PRIMARY | 2500 ohms | 85 ohms | |
| SECONDARY | 16/8/4 ohms | 1.6 ohms | |
| ALTERNATIVE SECONDARY OPTIONS | Tapped 8/4 ohms | ||
| DC quiescent current (no signal) | 120 mA | ||
| Maximum Power at 30 Hz | 15 Watts | ||
| PRIMARY INDUCTANCE | 15 Henrys | ||

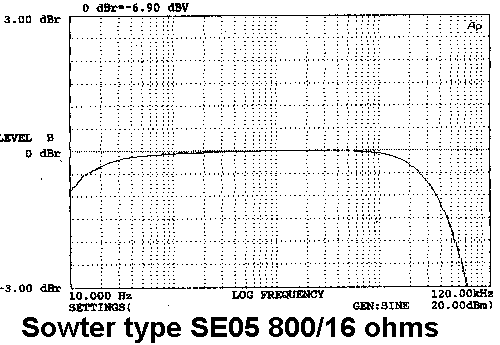

| FREQUENCY RESPONSE (800 ohm source, 16 ohm load) | 8 Hz to 70 kHz (-3 dB points typical) | ||
|
|
||
| E A Sowter Ltd The Boatyard, Cullingham Road IPSWICH IP1 2EG England |
 |
