SOWTER TYPE SE15
1500 ohms 30W SINGLE ENDED OUTPUT TRANSFORMER FOR PARALELL KT88, EL34 ETC
| PACKAGE OPTIONS | PACKAGE CODE |
SOWTER TYPE SE151500 ohms 30W SINGLE ENDED OUTPUT TRANSFORMER FOR PARALELL KT88, EL34 ETC |
|
| FULLY SHROUDED | SE15-S | ||
| OPEN FRAME | SE15-O | ||
|
|
||
| APPLICATION High performance 25W single ended output transformer for use with parallel KT88, EL34 or similar valve requiring a 1500 ohm reflected load. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Optional secondary winding configuration. Optional shrouded, open frame or encapsulated package styles. | |||
| PACKAGE SIZE | N | ||
| WEIGHT | 4.6 kg | ||
| WINDINGS: | Nominal Z | DC Resistance | |
| PRIMARY | 1500 ohms | 75 ohms | |
| SECONDARY | 16/8/4 ohms | 1.3 ohms | |
| ALTERNATIVE SECONDARY OPTIONS | Tapped 8/4 ohms | ||
| DC quiescent current (no signal) | 180 mA | ||
| Maximum Power at 25 Hz | 30 Watts | ||
| PRIMARY INDUCTANCE | 14 Henrys | ||

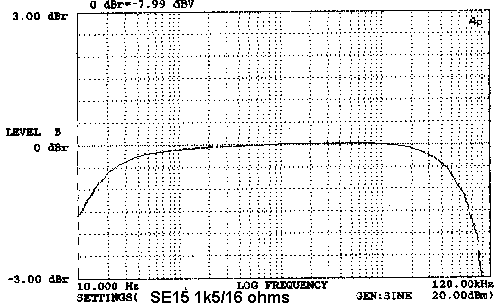

| FREQUENCY RESPONSE 1500 ohm source, 16 ohm load) | 10 Hz to 90 kHz (-3 dB points typical) | ||
|
|
||
| E A Sowter Ltd The Boatyard, Cullingham Road IPSWICH IP1 2EG England |
 |
