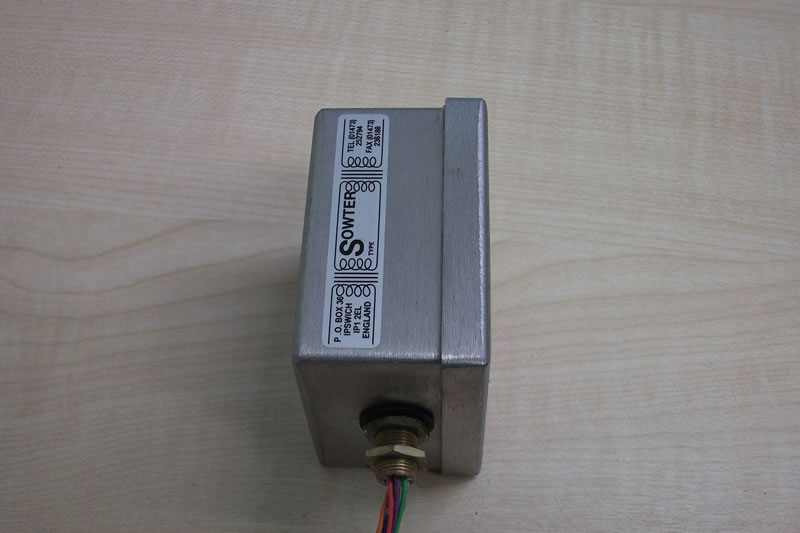

23kCT/150+150 ohm output transformer for driving a balanced line from push-pull 6CG7 etc Similar to Peerless 16402. Tested with the Drip Altec 436C. The two secondary windings can be connected in series for 600 Ohm operation or in parallel for 150 Ohms operation. To view package options and dimensions CLICK HERE
To view the Altec 436C schenatic CLICK HERE

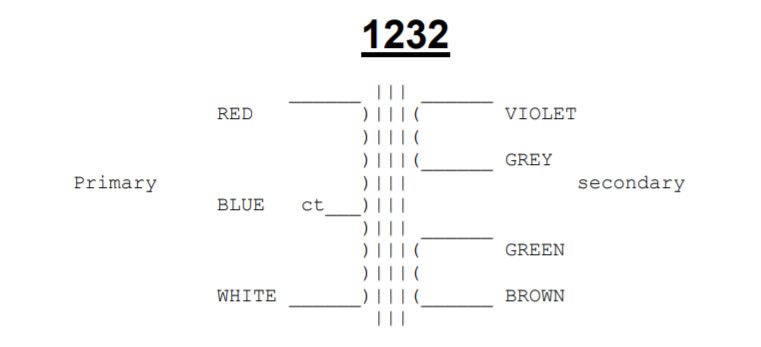

| RATIO | 6.2CT : 0.5+0.5 |
| IMPEDANCE RATIO | 23KCT / 150+150 Ohms |
| MAXIMUM PRIMARY DC per side | 20 mA |
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +30 dBu |
| PRIMARY INDUCTANCE | 80H approx |
| DC Resistance (primary) | 650 Ohms approx |
| DC Resistance (secondary) | 21 Ohms approx |

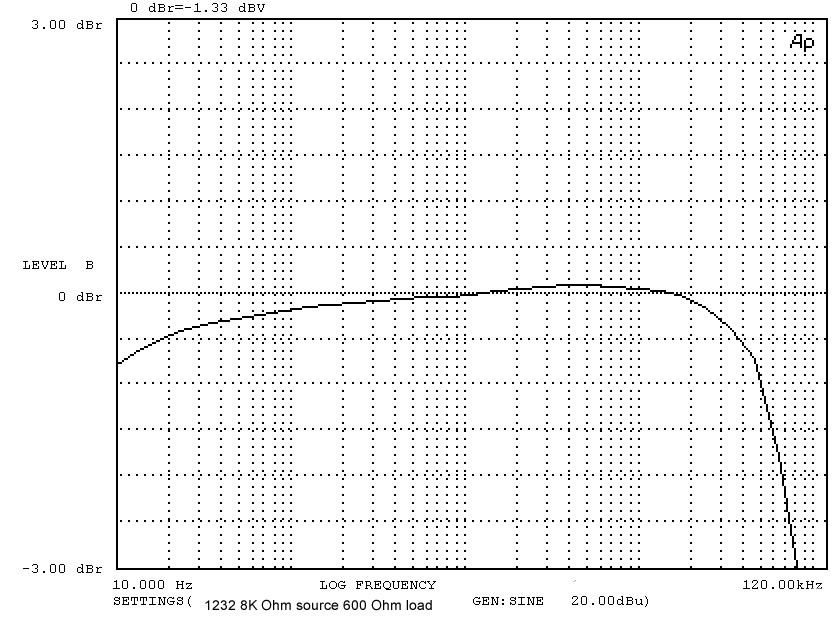

| FREQUENCY RESPONSE 8000 Ohm source 600 Ohm load. (-3 dB points) | 10Hz to 80 KHz |
