SOWTER AUDIO TRANSFORMERS
LA-2A INPUT TRANSFORMER

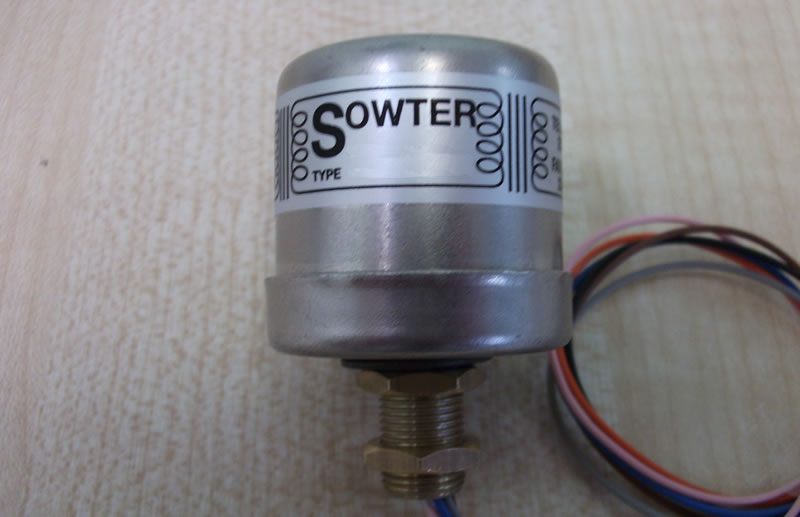

Sowter type 1449
Replacement for UTC A10 for Teletronix LA-2A UA 175 600/50K Input Transformer- BUY

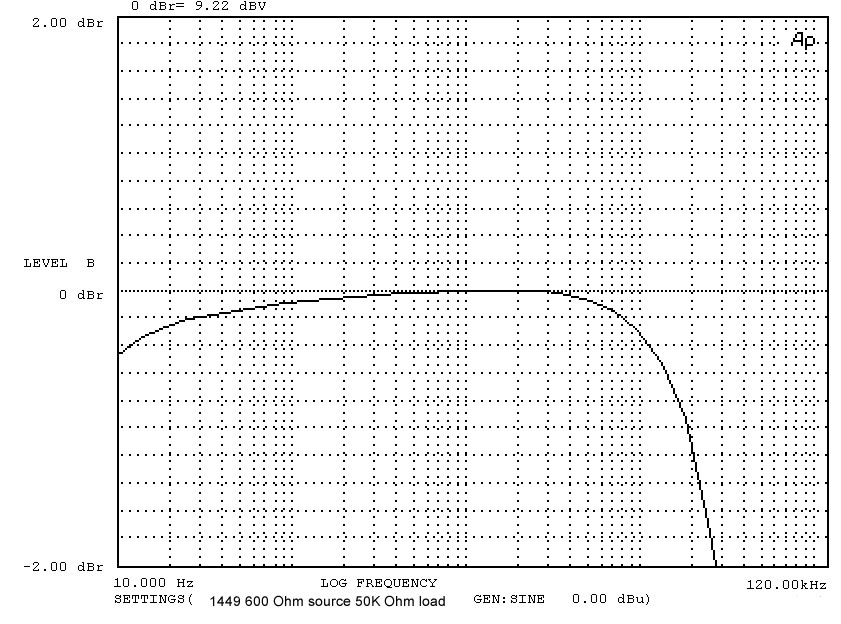

1449 frequency response

APPLICATION

Replacement input transformer for Universal UA175, Teletronics LA-2A. Fits Drip Opto 4, Opto 5 and UA175b boards. Similar to UTC 10. Available in side lead, PCB pins and threaded grommet style. To view package options and dimensions CLICK HERE

FEATURES

100% Mumetal core for minimal harmonic distortion and high inductance. Mumetal can for magnetic shielding.
RATIO 1:9.13
MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) +12 dBu
PRIMARY INDUCTANCE 6.7 H approx
DC Resistance (primary) 41 Ohms approx
DC Resistance (secondary) 2360 Ohms approx
FREQUENCY RESPONSE 600 Ohms source 50K Ohms load. (-3 dB points) 5Hz to 30K Hz
