> SOWTER TYPE 3575 TRANSFORMER SOWTER AUDIO TRANSFORMERS
BEST SELLING ISOLATOR BALANCING TRANSFORMER

SOWTER TYPE 3575

3575 10K/10K Bridging input transformer - BUY

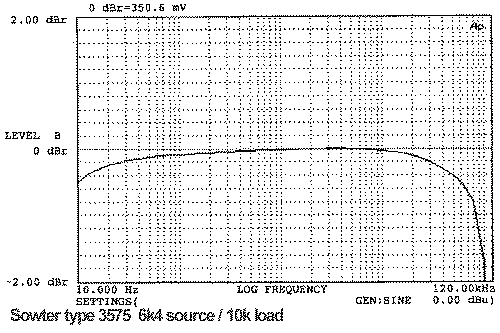

Sowter 3575 isolator frequency response

Available with and without Mumetal can. See here:

Sowter package styles

APPLICATION

For reduction of most kinds of noise caused when equipments are connected. Ideal as an input transformer for a valve or transistor amplifier to provide a balanced, isolated line input which will then accept balanced or unbalanced sources of any impedance. Unbalanced to balanced conversion and vice versa. For use where it is important not to load the driving circuit. For helping to ensure Electromagnetic Compatibility (EMC) compliance. High level capability means it will not be overloaded in most applications.

FEATURES

High impedance presents minimal load to a 10 KOhm source even at 15 Hz. Mumetal core for minimal harmonic distortion. Internal electrostatic shield for high common mode noise rejection. Mumetal can for magnetic shielding. Secondary centre tap for phase splitting etc. Various package options.
RATIO 1:1ct
MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) +26 dBu
DISTORTION at 50 Hz (Source 40 ohms) 0.05% at +20 dBu
PRIMARY INDUCTANCE 30H approx
TOTAL DCR (Referred to primary) 1300 Ohms approx
INSERTION LOSS 10k ohm source 10k ohm load 1.08 dBu
INPUT/OUTPUT BALANCE >60 dB
FREQUENCY RESPONSE 6k4 ohm source 10k ohm load +/- 0.25 dB 15 Hz to 60 kHz
Sowter 3575 isolator dimensions of leaded and pinned package
Sowter 3575 isolator lead and pin connections
