LOW COST HIGH IMPEDANCE ISOLATOR BALANCING TRANSFORMER

SOWTER TYPE 4600

4600 10K/10K Bridging input transformer - BUY

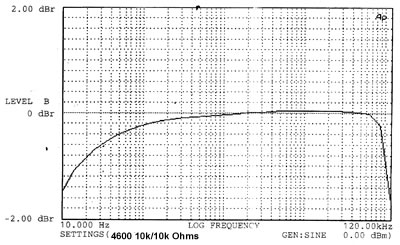

Sowter 4600 isolator frequency response

Available with and without Mumetal can. See here:

Sowter package styles

APPLICATION

For reduction of most kinds of noise caused when equipments are connected. Ideal as an input transformer for a valve or transistor amplifier to provide a balanced, isolated line input which will then accept balanced or unbalanced sources of any impedance. Unbalanced to balanced conversion and vice versa. For use where it is important not to load the driving circuit. For helping to ensure Electromagnetic Compatibility (EMC) compliance.Flease check level capability is adequate for your application. For High levels use type 3575.

FEATURES

High impedance presents minimal load to a 10 KOhm source even at 15 Hz. Mumetal core for minimal harmonic distortion. Internal electrostatic shield for high common mode noise rejection. Mumetal can for magnetic shielding. Secondary centre tap for phase splitting etc. Various package options.
RATIO 1:1
MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) +12.5 dBu
DISTORTION at 50 Hz (Source 40 ohms) 0.05% at +6.5 dBu
PRIMARY INDUCTANCE 30H approx
TOTAL DCR (Referred to primary) 1300 Ohms approx
INSERTION LOSS 7.5k ohm source 10k ohm load 0.75 dBu
INPUT/OUTPUT BALANCE >50 dB
FREQUENCY RESPONSE 6k4 ohm source 10k ohm load +/- 0.25 dB 15 Hz to 60 kHz
Sowter 3575 isolator dimensions of leaded and pinned package

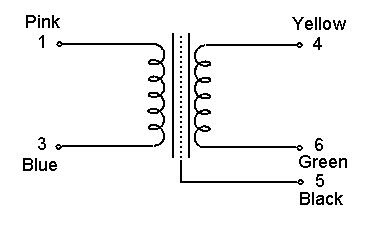

Sowter 3575 isolator lead and pin connections
