Sowter Type 8044
Direct Injection (DI) Box Transformer
DOUBLE FARADAY SHIELDS
10 Hz to 20 kHz
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax:+44(0)1473 236188
Sowter Type 8044Direct Injection (DI) Box Transformer |
PACKAGE OPTIONS | Part Number | |
| Coloured Leads | 8044-F | ||
| PCB Mounting | 8044-C | ||
|
|
||
| APPLICATION For matching high impedance (10k ohm) guitar pick-up etc to microphone input. Ensures optimum loading of the guitar pick-up and correct matching to microphone pre-amplifier. For use in high electrical noise environments such as when pick-up is connected to guitar amplifier as well as microphone channel. Accepts balanced or unbalanced inputs or outputs. Ideal for matching a high impedance amplifier output to a balanced 600 ohm line but a dc blocking capacitor must be used. | |||
| FEATURES Mumetal core for minimal harmonic distortion. Two separate Faraday (electrostatic) screens for rejecting noise in both guitar amplifier and microphone channel. Mumetal can for magnetic shielding. | |||
| RATIO | 12:1 | ||
| MAXIMUM LEVEL 0.5 % THD at 50 Hz (40 ohm source) | +29 dBu | ||
| DISTORTION at 50 Hz (Source 40 ohms) | 0.25% at +20 dBu | ||
| PRIMARY INDUCTANCE/RESISTANCE (approx) | 570 H / 3500 Ohms | ||
| SECONDARY INDUCTANCE/RESISTANCE (approx) | 3.9H / 59 Ohms | ||

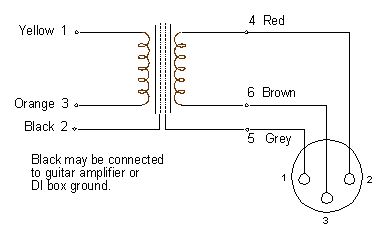

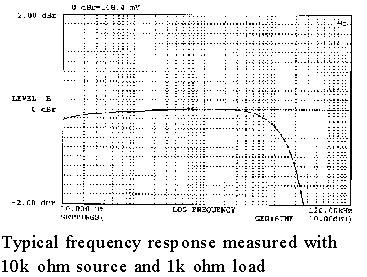

| FREQUENCY RESPONSE 10k ohm source 1k ohm load | +/- 1 dB
10 Hz to 20 kHz |
||
|
|
||
