APPLICATION

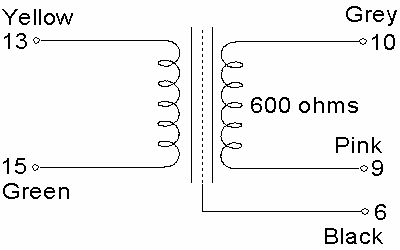

For use in a high performance valve compressor/amplifier etc. Designed for use with a cathode follower or other low impedance source ideally 600 Ohms or less driving a nominal 600 ohm line. A good quality capacitor must be used to isolate the transformer from the dc voltage of the driving stage..  No dc is permitted in the primary winding.

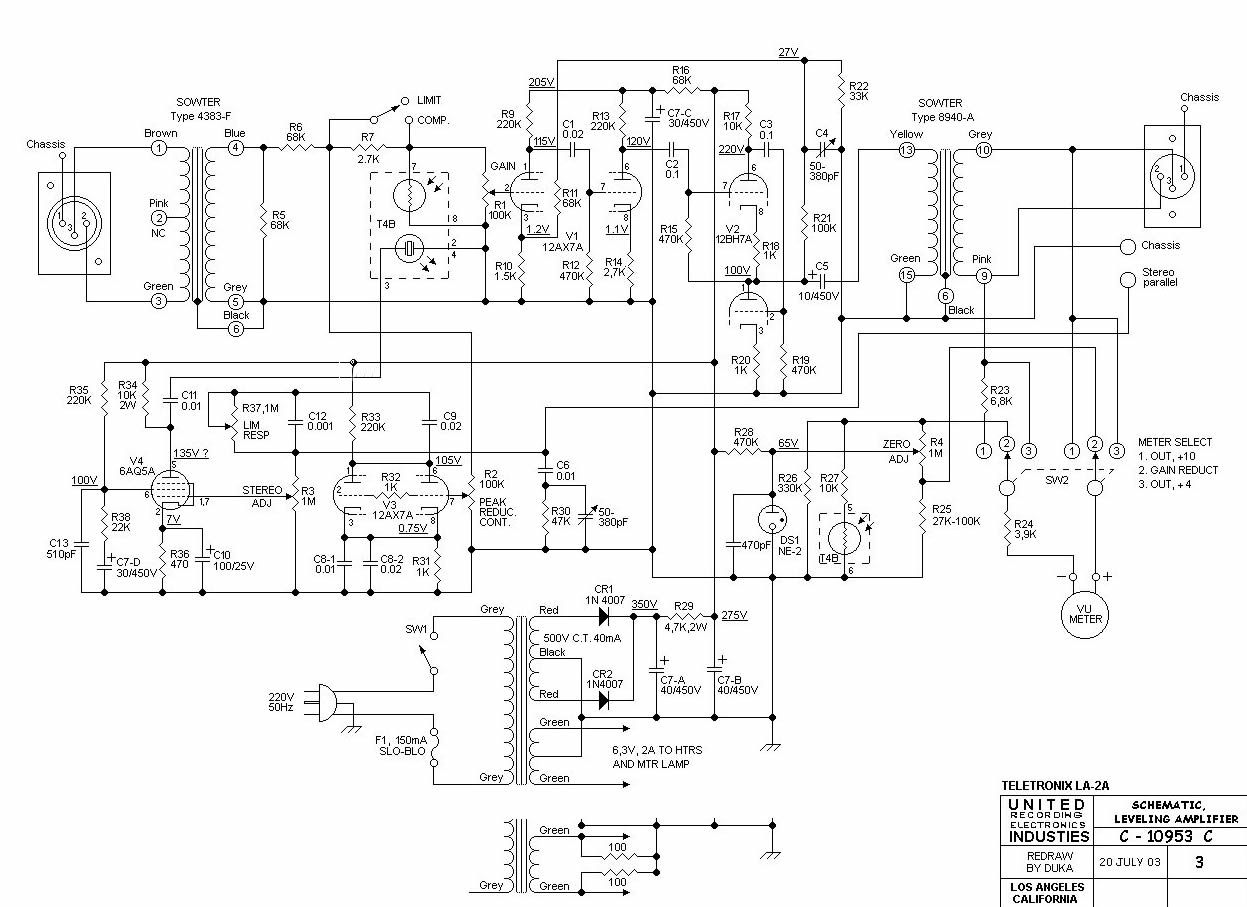

For use with Drip Opto 4. Link to SCHEMATIC

FEATURES

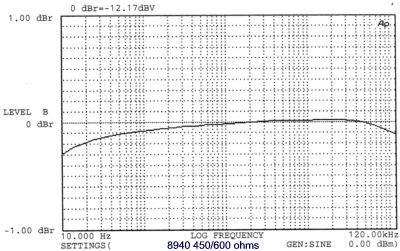

Combination core using High grade Grain Oriented Silicon Iron (M6) and Mumetal (76% Nickel). This provides minimal harmonic distortion, a high level capability, exceptional bandwidth and transient response which is maintained over a dynamic range of 100 dB or more. Internal electrostatic shields to maximise output balance and noise immunityMimimal low frequency phase shift. Low dc resistance ensures the possibility of a pre amp with a very low output impedance.
