PULTEC EPQ1A INPUT TRANSFORMER

SOWTER 9330
Replacement for Triad HS-29. Pultec EPQ-1A 2.5K/10KCT Input Transformer - BUY

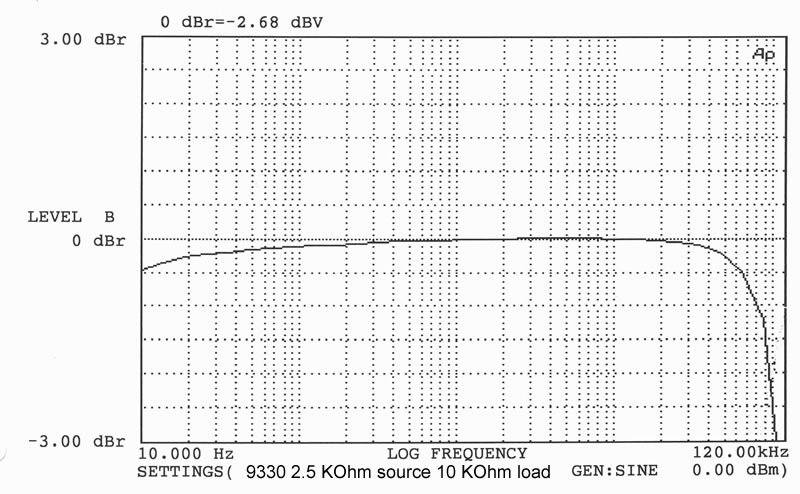

9330 frequency response plot
Style Ee threaded grommet

APPLICATION

Replacement for Triad HS-29. Input transformer for EPQ-1A. Useful for providing a 6 dB gain for any high impedance input. Suitable for any source balanced or unbalanced not exceeding 2.5 KOhms. Tested with Drip EPQ1A board. Use threaded grommet option.

Tested with Drp



FEATURES

100% Mumetal core for minimal THD and high inductance ensuring a high impedance over an excellent bandwidth together with low phase distortion. Mumetal can for magnetic shielding. Internal electroststic shield to ensure good common mode rejection and accurate phase splitting at high frequencies even with an unbalanced source. Available with threaded grommet (style e), PCB pins (style c) and side leads (style f). To see dimensions etc CLICK HERE
RATIO 1:2 CT
IMPEDANCE RATIO 25K / 10K
MAXIMUM INPUT LEVEL 0.5 % THD at 50 Hz (40 ohm source) +24 dBu
PRIMARY INDUCTANCE 37 H approx
DC Resistance (primary) 160 Ohms approx
DC Resistance (secondary) 800 Ohms approx
FREQUENCY RESPONSE 2.5 KOhm source 10 K Ohm load. (-3 dB points) 5 Hz to 100 KHz

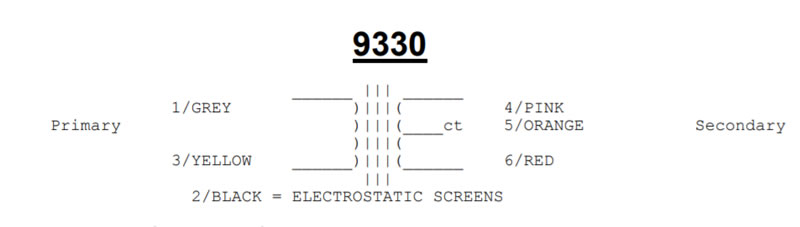

9330 lead colours
