SOWTER TYPE SA02
5000 ohms SINGLE ENDED OUTPUT TRANSFORMER FOR TRIODE CONNECTED EL84
| PACKAGE OPTIONS | PACKAGE CODE |
SOWTER TYPE SA025000 ohms SINGLE ENDED OUTPUT TRANSFORMER FOR TRIODE CONNECTED EL84 |
|

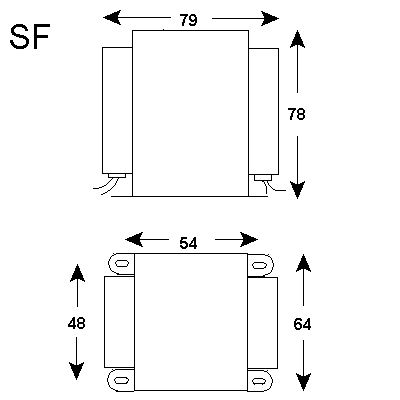

| FULLY SHROUDED | SA02-S | ||

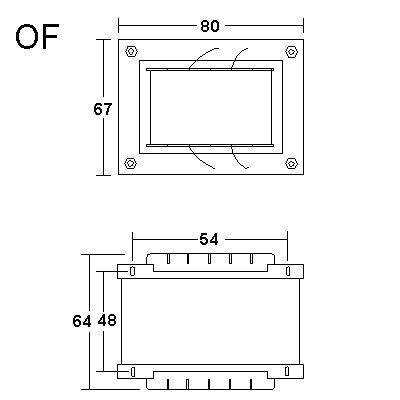

| OPEN FRAME | SA02-O | ||
|
|
||
| APPLICATION High performance low power single ended output transformer for use with triode connected EL84 or similar valve requiring a 5000 ohm reflected load. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 7 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Optional secondary winding configuration. Optional shrouded or open frame package styles. | |||
| PACKAGE SIZE | F | ||
| WEIGHT | 1.2 kg | ||
| WINDINGS: | Nominal Z | DC Resistance | |
| PRIMARY | 5000 ohms | 550 ohms | |
| SECONDARY | 16/8/4 ohms | 1.1ohms | |
| ALTERNATIVE SECONDNDARY OPTIONS | Tapped 8/4 ohms | ||
| DC quiescent current (no signal) | 45 mA | ||
| Maximum Power at 20 Hz | 5 Watts | ||

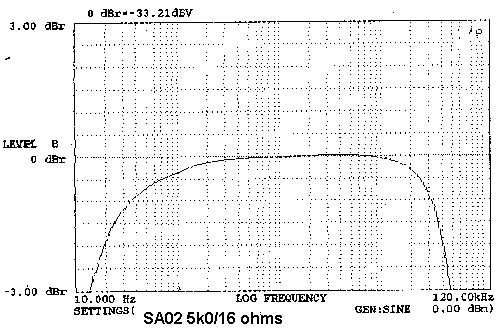

| FREQUENCY RESPONSE (5000 ohm source, 16 ohm load) | 20 Hz to 47 kHz (-3 dB points typical) | ||
|
|
||
