SOWTER TYPE SA14
65 ohms 120W SINGLE ENDED OUTPUT TRANSFORMER FOR 20 PARALELL 6BX7 ETC
| PACKAGE OPTIONS | PACKAGE CODE |
SOWTER TYPE SA1465 ohms 120W SINGLE ENDED OUTPUT TRANSFORMER FOR 20 PARALELL 6BX7 ETC |
|
| FULLY SHROUDED | SE14-S | ||
| OPEN FRAME | SE14-O | ||
| ENCPSULATED | SE14-P+ | ||
|
|
||
| APPLICATION High performance 120W single ended output transformer for use with 20 x parallel 6BX7 or similar valve requiring a 65 ohm reflected load. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Optional secondary winding configuration. Optional shrouded, open frame or encapsulated package styles. | |||

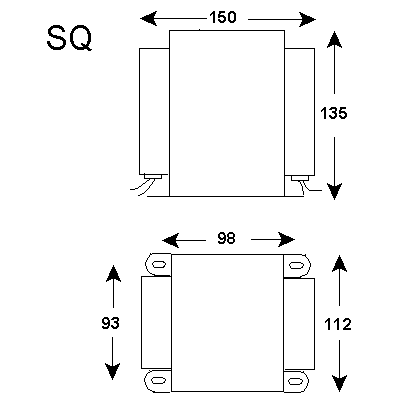

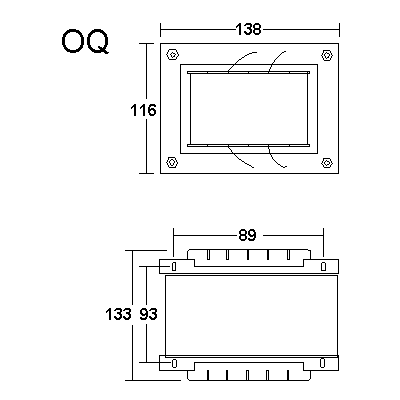

| PACKAGE SIZE | Q | ||
| WEIGHT | 9.5 kg | ||
| WINDINGS: | Nominal Z | DC Resistance | |
| PRIMARY | 65 ohms | 2.19 Ohms | |
| SECONDARY | 16/8/4 ohms | 0.88 Ohms | |
| ALTERNATIVE SECONDARY OPTIONS | Tapped 8/4 ohms | ||
| DC quiescent current (no signal) | 600 mA | ||
| Maximum Power at 20 Hz | 120 Watts | ||
| PRIMARY INDUCTANCE | 1.0 Henrys | ||

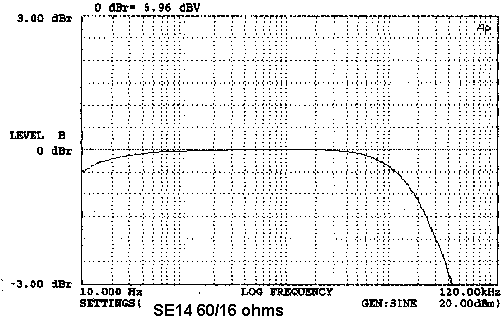

| FREQUENCY RESPONSE (60 ohm source, 16 ohm load) | 10 Hz to 40 kHz (-3 dB points typical) | ||
|
|
||
| E A Sowter Ltd The Boatyard, Cullingham Road IPSWICH IP1 2EG England |
 |
Tel: +44(0)1473 252794 Fax: +44(0)1473 236188 E-Mail sales@sowter.co.uk |
