SOWTER Type U080
GUITAR OUTPUT TRANSFORMER for PUSH-PULL 6V6 etc
5500 ohm source (+/- 1.5 dB)
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax: +44(0)1473 236188
SOWTER Type U080GUITAR OUTPUT TRANSFORMER for PUSH-PULL 6V6 etc |
PACKAGE OPTIONS | STYLE CODE | |
| Fully Shrouded | S | ||
| Drop Through | T | ||
|
|
||
| APPLICATION A low cost guitar amplifier output transformer for push-pull 6V6 or similar valves. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Two chamber bobbin to ensure full geometric balance. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Other secondary configurations available at time of order. Various package options. | |||
| Impedance | DC Resistance | Inductance | |
| PRIMARY | 8000 ohms | 132 ohms | 65 H |
| SECONDARY | 8 ohms | 0.36 ohms | 0.066 H |
| LEAKAGE INDUCTANCE referred to primary | ~3 mH | ||
| VOLTAGE RATIO (16 ohm config) | 31.6:1 | ||
| POWER (For 0.5 % Distortion at 50 Hz) | 15 W | ||
| DISTORTION (30 Watts at 1000Hz) | 0.05 % | ||
| DC QUIESCENT CURRENT | 95 mA max. | ||

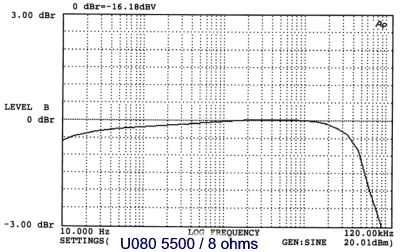

| FREQUENCY RESPONSE
(Typical) 5500 ohm source (+/- 1.5 dB) |
20 Hz to 80 kHz | ||
|
|||
