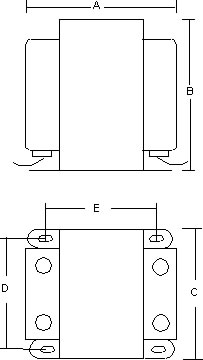

STYLE S - FULLY SHROUDED |
Size | Dimensions in mm | ||||
A | B | C | D | E | ||
A | 54 | 58 | 48 | 35 | 37 | |
B | 60 | 58 | 48 | 35 | 43 | |
C | 66 | 58 | 48 | 35 | 49 | |
D | 72 | 58 | 48 | 35 | 55 | |
E | 73 | 78 | 64 | 48 | 48 | |
F | 79 | 78 | 64 | 48 | 54 | |
G | 85 | 78 | 64 | 48 | 60 | |
H | 98 | 78 | 64 | 48 | 73 | |
I | 79 | 88 | 72 | 57.5 | 54 | |
J | 88 | 88 | 72 | 57.5 | 63 | |
K | 107 | 88 | 72 | 57.5 | 82 | |
L | 86 | 117 | 96 | 79 | 55 | |
M | 98 | 117 | 96 | 79 | 67 | |
N | 110 | 117 | 96 | 79 | 79 | |
O | 123 | 117 | 96 | 79 | 92 | |
P | 135 | 117 | 96 | 79 | 104 | |
Q | 150 | 135 | 112 | 93 | 98 | |
T | 162 | 135 | 112 | 93 | 110 | |
R | 175 | 135 | 112 | 93 | 123 |
