SOWTER Type U027HIGH PERFORMANCE PUSH PULL OUTPUT TRANSFORMER
|
PACKAGE DIMENSIONS | STYLE /SIZE REF | |
| Fully Shrouded | SN | ||
| Drop Through | TN | ||
| Open Frame | ON | ||
 |
 |
||
| APPLICATION A Very high performance output transformer for push-pull KT88 in fixed bias mode or similar valves. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Two chamber bobbin to ensure full geometric balance. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Other secondary configurations available at time of order. Various package options. | |||
| Impedance | DC Resistance | Inductance | |
| PRIMARY | 5000 ohms | 47 ohms | 28H |
| SECONDARY | 8 ohms | 0.28 ohms (8 ohm config) |
0.06 H (8 ohm config) |
| LEAKAGE INDUCTANCE referred to primary | 1.92 mH | ||
| VOLTAGE RATIO (8 ohm config) | 21.79:1 | ||
| POWER (For 0.5 % Distortion at 20 Hz) | 50 W | ||
| DISTORTION (30 Watts at 1000Hz) | 0.05 % | ||
| DC QUIESCENT CURRENT | 180 mA max. | ||

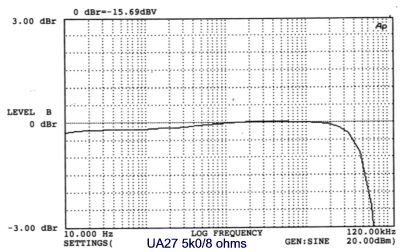

| FREQUENCY RESPONSE
(Typical) 5 ohm source (+/- 1.5 dB) |
5 Hz to 70 kHz | ||
| SHIPPING WEIGHT (SIZE CODE N) | 4.9 kg | ||
 |
|||
