SOWTER Type U079
PUSH-PULL OUTPUT TRANSFORMER FOR 300B OR 2A3
(8 ohm config)
(8 ohm config)
5 ohm source (+/- 1.5 dB)
The Boatyard Cullingham Road
IPSWICH IP1 2EG England
Fax: +44(0)1473 236188
SOWTER Type U079PUSH-PULL OUTPUT TRANSFORMER FOR 300B OR 2A3 |
PACKAGE DIMENSIONS | STYLE /SIZE REF | |
| Fully Shrouded | SM | ||
| Drop Through | TM | ||
| Open Frame | OM | ||
|
|
||
| APPLICATION A low priced high performance output transformer for push-pull 300B or similar valves. | |||
| FEATURES Highest grade low loss (M6) grain oriented silicon iron core for minimal distortion. 14 interleaved winding sections to maximize bandwidth and ensure clean transient response. Two chamber bobbin to ensure full geometric balance. Low copper resistance to minimize losses and maximize loudspeaker damping. 4 separate secondary windings (See below) for optimum matching to load without the use of tapped windings which can reduce HF response. Other secondary configurations available at time of order. Various package options. | |||
| Impedance | DC Resistance | Inductance | |
| PRIMARY | 5000 ohms | 123 ohms | 87 H |
| SECONDARY | 16/8/4 ohms | 0.4 ohms (8 ohm config) |
0.139 H (8 ohm config) |
| LEAKAGE INDUCTANCE referred to primary | 3.0 mH | ||
| VOLTAGE RATIO (8 ohm config) | 25:1 | ||
| POWER (For 0.5 % Distortion at 20 Hz) | 30 W | ||
| DISTORTION (30 Watts at 1000Hz) | 0.05 % | ||
| DC QUIESCENT CURRENT | 150 mA max. | ||

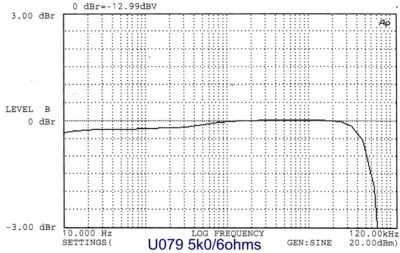

| FREQUENCY RESPONSE
(Typical) 5 ohm source (+/- 1.5 dB) |
5 Hz to 70 kHz | ||
| SHIPPING WEIGHT (SIZE CODE M) | 3.6 kg | ||
|
|||
| E A Sowter Ltd The Boatyard Cullingham Road IPSWICH IP1 2EG England |
Tel: +44(0)1473 252794 Fax: +44(0)1473 236188 |
||
