EQ INDUCTORS

Inductors for EQ circuits or RIAA pre amplifiers to your specification up to 10H with up to 5 taps (7 leads). Please enquire for larger inductors. EQ inductors are adjusted to +/- 5% .

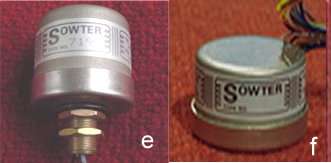

All inductors are packaged in a Mumetal can 34 mm dia. and 24 mm high. M3 mounting holes in the base 19 mm apart are provided.

Submit your specification using the link below. We will send you a specification reference which you can use to order.

A 200mH inductor tapped at 160, 100, 80, and 50 mH. DC resistance 32/28/22/20/16 ohms approx. Mumetal can with colour coded leads.

31.8H Inductor for Audio Note m10 Pre Amp
Mumetal can with colour coded leads.

7.6H Inductor for Audio Note m10 Pre Amp
Mumetal can with colour coded leads.

A 10H inductor tapped at 7.0, 3.0, and 1.3H. Mumetal can with colour coded leads.

A 2H inductor tapped at 1.2 and 0.7H. . Mumetal can with colour coded leads.

A 2H inductor tapped at 1.1 and 0.45H. DC resistance 85/59/35 ohms. Mumetal can with colour coded leads.

A 420 mH inductor tapped at 420/277/145/108/61/34 mH. Mumetal can with colour coded leads.

A 150 mH inductor tapped at 150/82/68/47/33/27 mH
18/12/11/9/8/7 ohms. Mumetal can with colour coded leads. Mounting options.
Tested with Drip EPQ1A (Choose threaded grommet type 9325E)

A 625mH inductor tapped at 477 mH. Mumetal can with colour coded leads.

A 267 mH inductor tapped at 269,169,69,22 mH Replaces separate 100,100,47.22 mH inductors shown on schematic
Mumetal can with colour coded leads. For input transfromer see type 9540. For output transformer see type 8403.

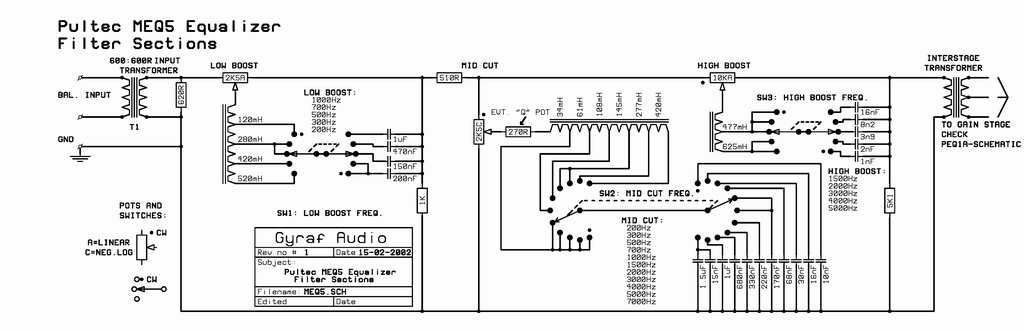

A 528mH inductor tapped at 420/200/120 mH
Mumetal can with colour coded leads. For input transfromer see type 4603. For output transformer see type 8920.
For Mid cut inductor see type 9858
